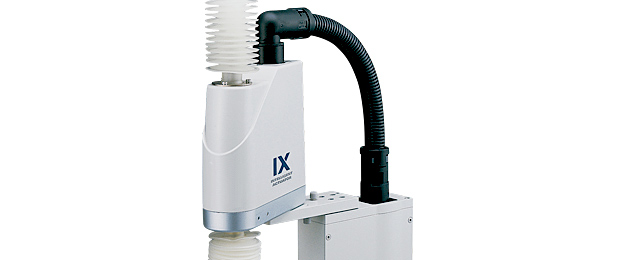

SCARA Robot with class 10 compatible.
Product information for IX-NNC series.
Features 1 High speed SCARA Robot with a variation of arm length of 120-800mm.
Features 2 Compatible to cleanliness class 10
Guide line specification of IX-NNC series
| Arm Length | Vertical axis stroke | Load capacity | Maximum Speed (Combined Speed) | ||
|---|---|---|---|---|---|
| 120 mm | 50 mm | Rating 0.2 kg | Maximum 1 kg | 2053 mm/sec | |
| 150 mm | 50 mm | Rating 0.2 kg | Maximum 1 kg | 2304 mm/sec | |
| 180 mm | 50 mm | Rating 0.2 kg | Maximum 1 kg | 2555 mm/sec | |
| 250 mm | 150 mm | Rating 1 kg | Maximum 3 kg | 3142 mm/sec | |
| 350 mm | 150 mm | Rating 1 kg | Maximum 3 kg | 3979 mm/sec | |
| 500 mm | 200 mm | 300 mm | Rating 2 kg | Maximum 10 kg | 6283 mm/sec |
| 600 mm | 200 mm | 300 mm | Rating 2 kg | Maximum 10 kg | 7121 mm/sec |
| 700 mm | 200 mm | 400 mm | Rating 5 kg | Maximum 20 kg | 6597 mm/sec |
| 800 mm | 200 mm | 400 mm | Rating 5 kg | Maximum 20 kg | 7121 mm/sec |
- ※This page provides information from the specification of all series to the maximum value. The maximum value may not be achieved and is subject to the combination of specification required.
- ※Please see the catalogue (PDF File) for more information.
