New arrival!! Waterproof Radial Cylinder for the ROBO Cylinder RCP4W series
RCP4W-RA6C／7C
Dust and water proof achieve the protection class of IP67. Corresponding to the radial load against long stroke and rod built-inside guide.
An actuator which works regardless of dusty, and/or water splashing environment.
Features 1 With this protection structure enables to use in a bad environment where it is covered with dust or water.
Features 2 A wide range of choice, which includes slider type/rod type/gripper type/SCARA type, is made available, allowing you to choose the model which suits best of its use
Features 3 The protection structure can select from IP50／IP54／IP65／IP67 to match the use environment.
Features 4 IP67 compatible waterproof type is in line-up for RCP2W/RCP4W
Features 5 A line up of dust proof / water proof type with the protection grade of IP65／IP67 first in ROBO Cylinder Slider type
Protection grade
Protection grade is determined base on an IEC standard. To protect water going in can be as follow.
| Grade | Level of protection. |
|---|---|
| IP54 | There is no harmful effect of splash from any direction. |
| IP65 | There is no harmful effect of water splash from any direction. |
| IP67 | Water will not get in even it sits in the water under the given circumstance. |

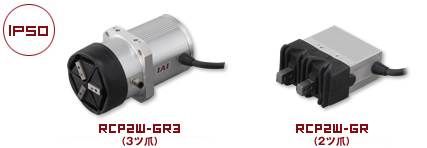

Dustproof type・ROBO Cylinder・Gripper Sliding type/IP50
Suitable for gripping in dusty environment
| Series | Numbers of claw | Type | Body width (mm) |
Open and /close stroke (mm) |
Maximum gripping force (N) |
|---|---|---|---|---|---|
| RCP2W | 2-claw | GRS | 74 | 10 (5 for each sides) | 21 (10.5 for each sides) |
| GRM | 79 | 14 (7 for each sides) | 80 (40 for each sides) | ||
| 3-claw | GR3SS | 62 | 10 (5 for each sides) | 22 (7.3 for each sides) | |
| GR3SM | 80 | 14 (7 for each sides) | 102 (34 for each sides) |

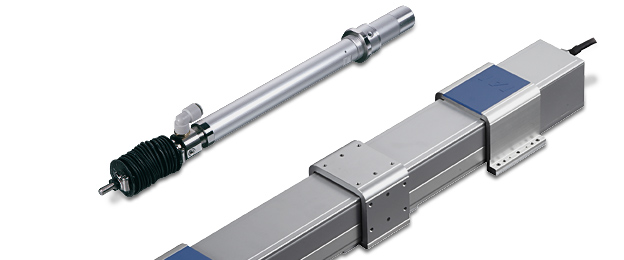

Water proof, ROBO Cylinder, Rod type
Rod type with a better water proof performance, by strengthening the seal on rod receiver or using bellows and air purge.
Waterproof / IP67
Waterproof type / IP65

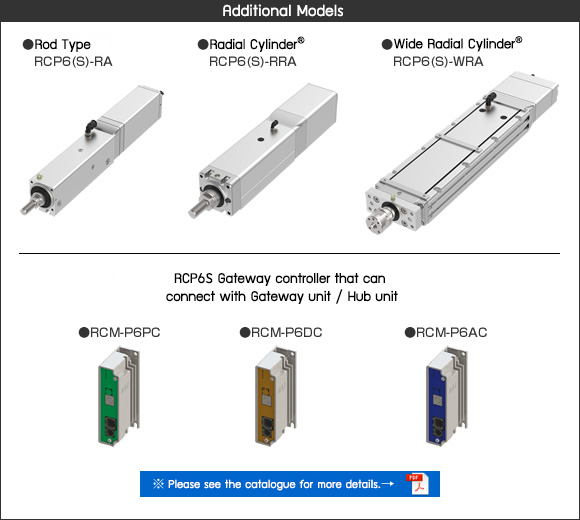

Added Series
Dustproof/splashproof specification is now available for ROBO Cylinder® RCP6 series!
(Released on 19 June 2017)
Dustproof/splashproof specification is now available for ROBO Cylinder® RCP6 series!
(Released on 19 June 2017)
| Series | Maximum Stroke |
Maximum Load capacity |
Maximum Speed |
Applicable Controller |
Maximum positioning points | Number of registered program |
|
|---|---|---|---|---|---|---|---|
| RCP2W- RA4C/ RA6C |
300 mm | 55Kg (Horizontal) 26kg (Vertical) |
450 mm/s |
Position Controller |
PCON | 512 points | - |
| Program Controller |
PSEL | 1500 points | 64 program (2000 step) |
||||

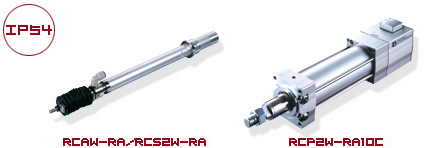

Water proof type / IP54
| Series | Maximum Stroke |
Maximum Load capacity |
Maximum Speed |
Applicable Controller |
Maximum positioning points | Number of registered program |
|
|---|---|---|---|---|---|---|---|
| RCAW-RA | 300 mm | 18Kg (Horizontal) 6.5kg (Vertical) |
600 mm/s |
Position Controller |
ACON | 512 points | - |
| Program Controller |
ASEL | 1500 points | 64 program (2000 step) |
||||
| RCS2W-RA | 300 mm | 18Kg (Horizontal) 6.5kg (Vertical) |
600 mm／s |
Position Controller |
SCON | 512 points | - |
| Program Controller |
SSEL | 1500 points | 64 program (2000 step) |
||||
| XSEL | 4000 points | 64 program (6000 step) |
|||||
| RCP2W-RA10C | 300 mm | 18Kg (Horizontal) 6.5kg (Vertical) |
250 mm/s |
Please ask for detail of controller for RCP2W-RA10C type. |
|||
| Maximum pressing power of 6000N |
|||||||
Waterproof type - ROBO Cylinder - Slider type
Outer and inner is completely separated by mounted ball screw inside shaft and bonded with magnet.
Waterproof / IP67
| Series | Maximum Stroke |
Maximum Load capacity |
Maximum Speed | Applicable Controller |
Maximum positioning points |
Number of registered program |
|
|---|---|---|---|---|---|---|---|
| RCP2W-SA | 600mm | 35kg (Horizontal) | 180 mm/s | Please ask for detail of controller for RCP2W-SA16C type. | |||
- ※Please see the catalogue (PDF File) for more information.
Waterproof type / IP65
| Series | Maximum Stroke |
Maximum Load capacity |
Maximum Speed |
Applicable Controller |
Maximum positioning points | Number of registered program |
|---|---|---|---|---|---|---|
| RCP4W- SA5C／ SA6C／ SA7C |
700 mm | 20kg (support both ends/horizontal) |
530 mm／s |
PCON-CA | 512 points | - |
- Catalogue RCP4W-SA5C / SA6C / SA7C (PDF: 7.1MB)
- ※ Please see the catalogue (PDF File) for more information.
Waterproof type - Single axis Robot - Slider type
Waterproof performance enhancement by double seal on sliding part.
Waterproof type / IP65
| Series | Maximum Stroke |
Maximum Load capacity |
Maximum Speed |
Applicable Controller |
Maximum positioning points | Number of registered program |
|
|---|---|---|---|---|---|---|---|
| ISWA／ISPWA-S／M／L | 1000mm | 70kg (Horizontal) |
1000 mm／s |
Program Controller |
XSEL | 4000 points | 64 program (6000 step) |
- ISWA-S/M/L Catalogue (PDF: 4.6MB)
Water proof type - SCARA Robot
SCARA Robot (Horizontal multi joint robot) IX series is a re-design version of old IH series in all components with a new top class level of specification for high speed performance, load capacity, repeating positioning accuracy.
Also being a leader in usability, line up and cost performance.
Waterproof type / IP65
| Series | Maximum Stroke |
Maximum Load capacity |
Maximum Speed |
Applicable Controller |
Maximum positioning points | Number of registered program |
|
|---|---|---|---|---|---|---|---|
| IX-NNW | Arm length 250mm～800mm |
5Kg (Rating) 20kg (Maximum) |
7121 mm/s (maximum composite) |
Program Controller |
XSEL for SCARA |
4000 points | 64 program (6000 step) |
- Catalogue IX-NNW (PDF: 4.6MB)
