Small-size type is now available
in stopper cylinder RCP4-ST
RCP4-ST4525E
Small-size type is now available
for conveyor work stopping ROBO cylinders.
Electric cylinder that achieves higher speed of 1.5 times and load capacity of 2 times
RCP4 series is an electric cylinder combined with new model of controller "Power Con 150 PCON-CA" that can perform maximum speed at 1.5 times and load capacity at 2 times.
Product Information of RCP4 series
- Series added

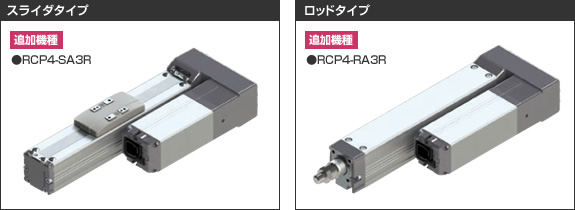

Motor-folded type is added to RCP4-SA3/RA3(released on 16th June 2015) -
Released on 12th February 2015
Small-size type is now available
Available in 31 July 2014
Additional smallest size body 32mm type SA3/RA3 for RCP4 series.
RCP4-SA3/RA3
Available in 22 February 2014
New arrival !! Stopper cylinder RCP4-ST
RCP4-ST68E/RCP4-ST615E
ROBO cylinder for stop work on conveyor.
Maximum weight of work that able to stop is 150kg.Available in 20 September 2013
New arrival !! Water proof radial cylinder for ROBO cylinder® RCP4W series
RCP4W-RA6C/7C
Dust and water proof achieve the protection class of IP67. Corresponding to the radial load against long stroke and rod built-inside guide.
Available in 1 October 2012
New series for ROBO cylinder® RPCP4 series
RCP4/RCP4CR
Additional motor reversing type and clean corresponding type
Available in 8 July 2012
ROBO cylinder® dust and water proof type RCP4W-SA5/6/7 is now available.
RCP4W-SA5/6/7
Capable to use in an area covered in dust or water due to the protection class of IP65
Feature of RCP4 Actuator
Features 1
A combination with new controller powercon 150 PCON-CA creates the maximum speed at 1.5 times and load capacity at 2 time.
Features 2
3 types / variation of motor, straight type, reversing motor type, and clean room type.
Features 3
Rod type with built-in guide (radial cylinder) is capable for long stroke (500mm) and radial load capacity.
Features 4
Changing motor can be done by 1 stop screw, easy for maintenance.
Features 5
The mounting hole of slider type is compatible to RCP2, so it is possible to replace with the current one.
Feature of POWERCON 150 PCON-CA
Features 1
It is possible to grasp the production quantity or operation rate by the integrated function of number of time of the movement.
Features 2
It is possible to confirm the timing to do maintenance by the integrated function of travelling distance.
Features 3
It is possible to record the time table of alarm occurance by calendar function.
Features 4
Controller control system can select from positioner type and pulse train type or field network type.
Features 5
Pulse motor help to reduce the motion noise in the low speed area.
Main function
Smart Tuning Function
the most suitable acceleration and speed for transfer load will be set up automatically by ROBO cylinder POWERCON software (Ver.8.03.00.00 or later) or a new type smart tuning function touch panel teaching (New CON-PTA) by only input actuator type, and transfer load etc.
Please see the catalogue for more details.
Variation of main RCP4 series
With pulse motor the maximum speed is 1.5 time and the load capacity is 2 times (when combined with PCON-CA)
Slider types catalogue (PDF: 11MB)
Motor Coupling Type SA5C / SA6C / SA7C
Motor Reversing Type SA5R / SA6R / SA7R
Rod type catalogue (PDF: 11 MB)
Motor Coupling Type RA5C / RA6C
